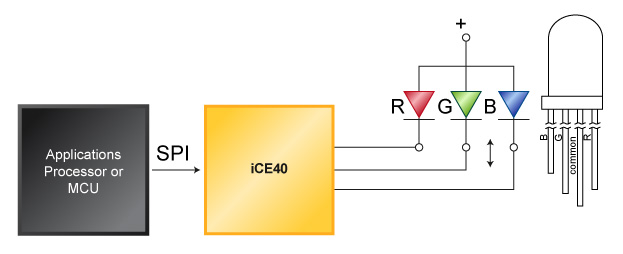

Complete control of RGB LEDs – control the color, blink rate, brightness and breathing (turn on/turn off speed). Using an SPI interface and software GUI, users can control all four RGB LED control functions from a MAC or Windows PC via a USB cable.
Low-cost, rapid customization – Offers a low-cost route to adding a fully controlled LED into any type of design, the Lattice RGB reference design allows rapid customization of LED operation for a given application.
Hardware evaluation board options – The RGB LED reference design can be evaluated and tested on the iCE40LP1K Evaluation Kit, the iCE40 Ultra Breakout Board, or the iCE40 UltraLite Breakout Board.
The RGB GUI can be run on the iCE40 Ultra Breakout Board, iCE40 UltraLite Breakout Board, or the iCE40LP1K Evaluation Kit.
Features
- Complete control of an RGB LED
- Color
- Brightness and intensity
- Blink rate
- Breathing (turn on/turn off speed)
- Software demonstration GUI available
- Control of all four LED functions from MAC or Windows PC via USB
- Hardware evaluation boards available
- Evaluate and test using iCE40LP1K Evaluation Kit, iCE40 Ultra Breakout Board, or iCE40 UltraLite Breakout Board
- Ultra-compact
- As few as 700 LUTs
