The LatticeECP3 AMC Evaluation Board allows designers to investigate and experiment with the features of the LatticeECP3 high-speed SERDES transceivers in an advanced mezanine card (AMC) system environment. The features of the LatticeECP3 AMC Evaluation Board assist engineers with rapid prototyping and testing of their designs. The board follows portions of the PICMG AMC R2.0 AMC form-factor specification that allows users the capability to use the board in live system evaluations.
Jump to
Features
- Single module AMC PCB card edge interface
- Allows demonstration of AMC Fat Pipes
- Common options interface
- Allows control of SERDES PCS registers using the Serial Client Interface (ORCAstra)
- DMC (FPGA Mezzanine Card) expansion connector
- USB-B connection to UART for run-time control
- RJ45 interface to 10/100/1000 Ethernet to SGMII
- SFP transceiver module cage and connection
- On-board Boot Flash
- 64M Serial SPI Flash
- DDR2 memory components (256MB x 32 bits)
- 32-bit parallel, non-volatile memory that can be read, erased and reprogrammed
- Switches, LEDs and displays for demonstration purposes
- ispVM™ System software programming support
- On-board reference clock sources
The board can be used as provided with a front-panel SFP cage that accepts industry standard transceiver modules. It also includes a RJ45 network jack for Ethernet communication. However, by removing the SFP and RJ45 the board can be used with a standard VITA 57.1 FPGA Mezzanine Card. This permits user-specific FMCs to be used with the LatticeECP3 AMC Evaluation Board.

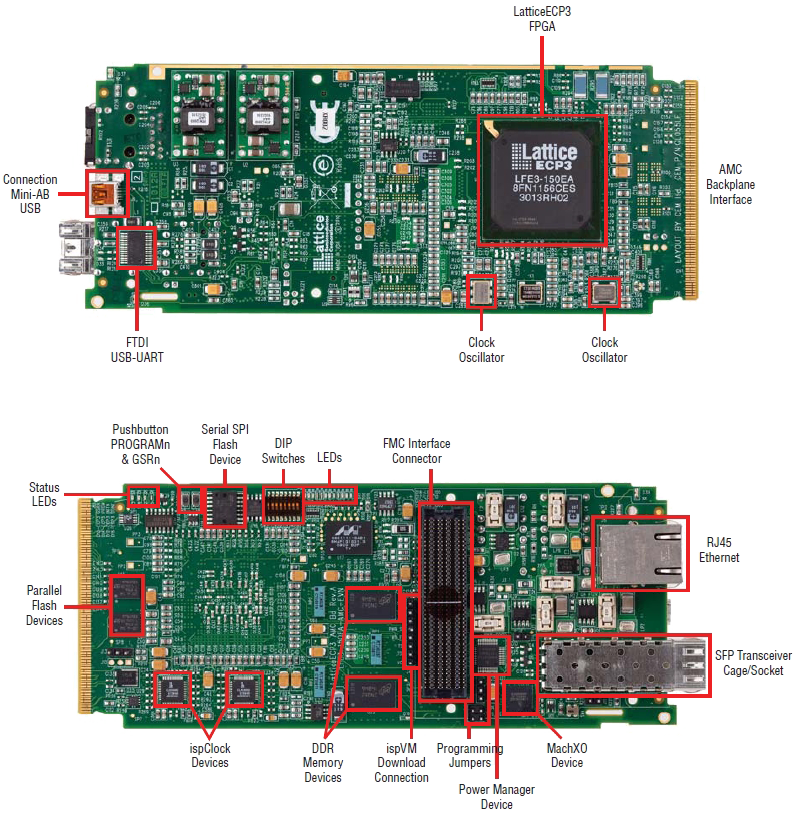

Board Photos
Ordering Information
- Reference Number: LFE3-150EA-AMC-EVN
- This board is no longer available for purchase.
- Information provided on this page is for reference purposes only.
- Contact your local Lattice sales representative for further information.
Documentation
Quick Reference | Information Resources |
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| Low-Cost Serial RapidIO to TI 6482 Digital Signal Processor Interoperability with LatticeECP3 | TN1214 | 1.1 | 10/18/2010 | 176.4 KB | |||
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| Low-Cost Serial RapidIO to TI 6482 Digital Signal Processor Interoperability with LatticeECP3 | TN1214 | 1.1 | 10/18/2010 | 176.4 KB | |||
*By clicking on the "Notify Me of Changes" button, you agree to receive notifications on changes to the document(s) you selected.
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| LatticeECP3 AMC Evaluation Board User's Guide | EB56 | 01.1 | 8/27/2012 | 6.6 MB | |||
| LatticeECP3 AMC Serial RapidIO 2.1 Demo User's Guide | UG39 | 01.0 | 11/17/2010 | 2.7 MB | |||
| Programming Cable - User Guide Describes the features and recommended usage guidelines of Lattice ispDOWNLOAD Cables. | FPGA-UG-02042 | 26.7 | 4/24/2024 | 992.6 KB | |||
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| Lattice HetNet Solutions Brochure | I0234 | 1.0 | 11/12/2013 | 2.2 MB | |||
| Wireless Solutions Brochure | I0197 | 3.0 | 8/14/2012 | 2 MB | |||
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| GEN2 Serial RapidIO and Low Cost, Low Power FPGAs | 1.0 | 8/4/2011 | 276 KB | ||||
