The MachXO2ZE Breakout Board allows simple evaluation and development of MachXO2ZE based designs. It has the LCMXO2-4000ZE-1BG256C device on it. A SPI Flash is available on this board for evaluating external boot or dual-boot functional capabilities.

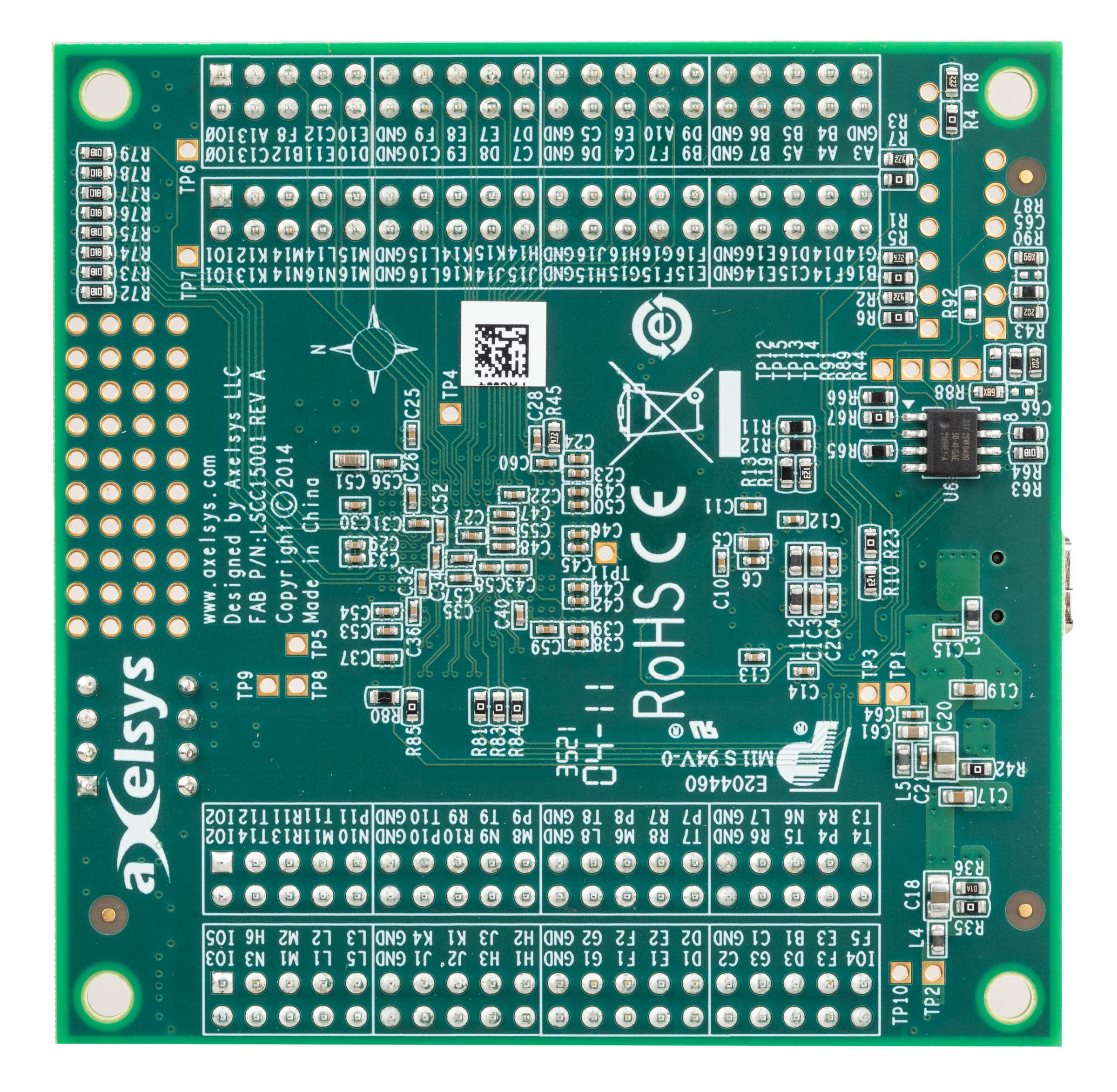

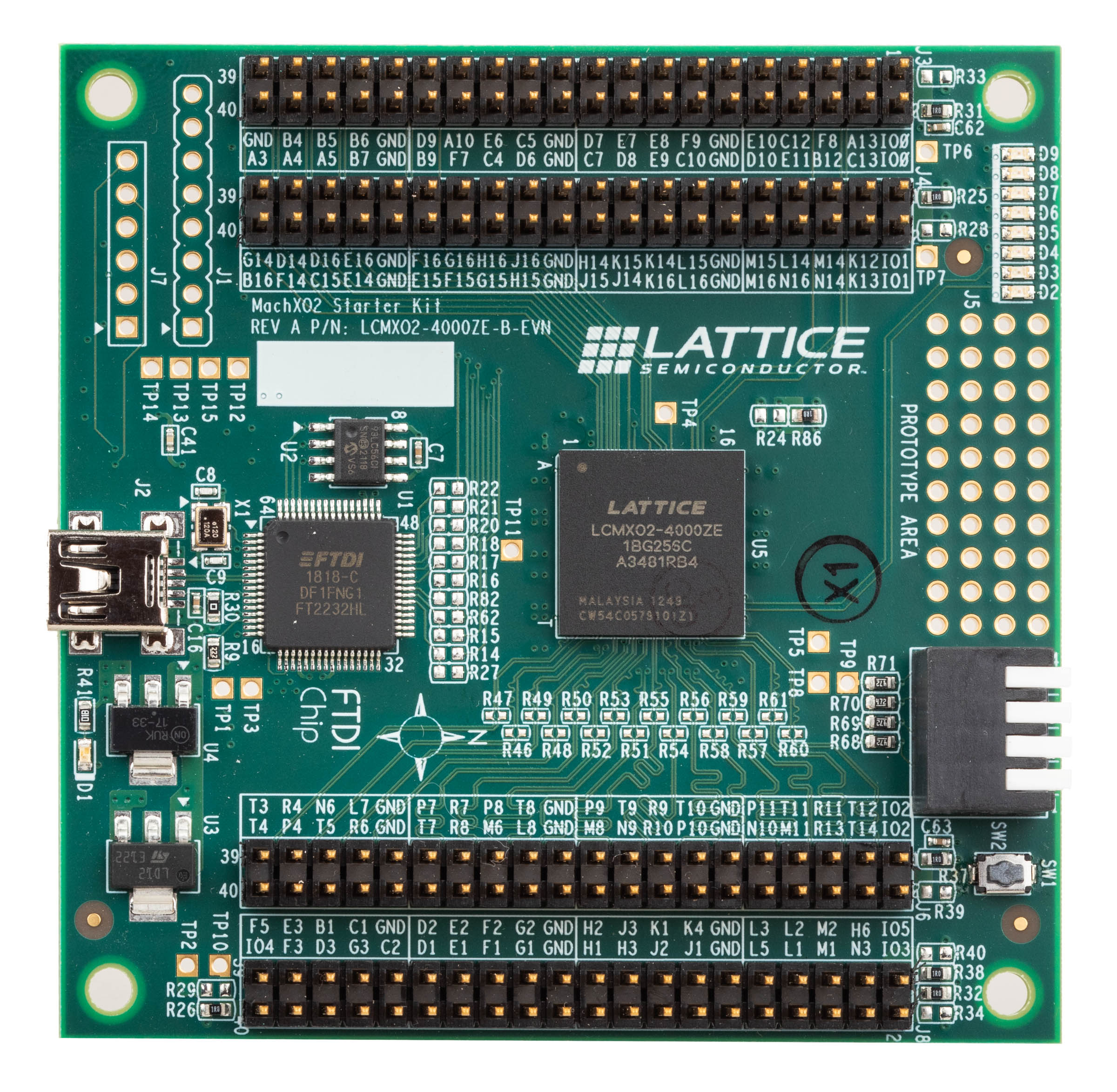

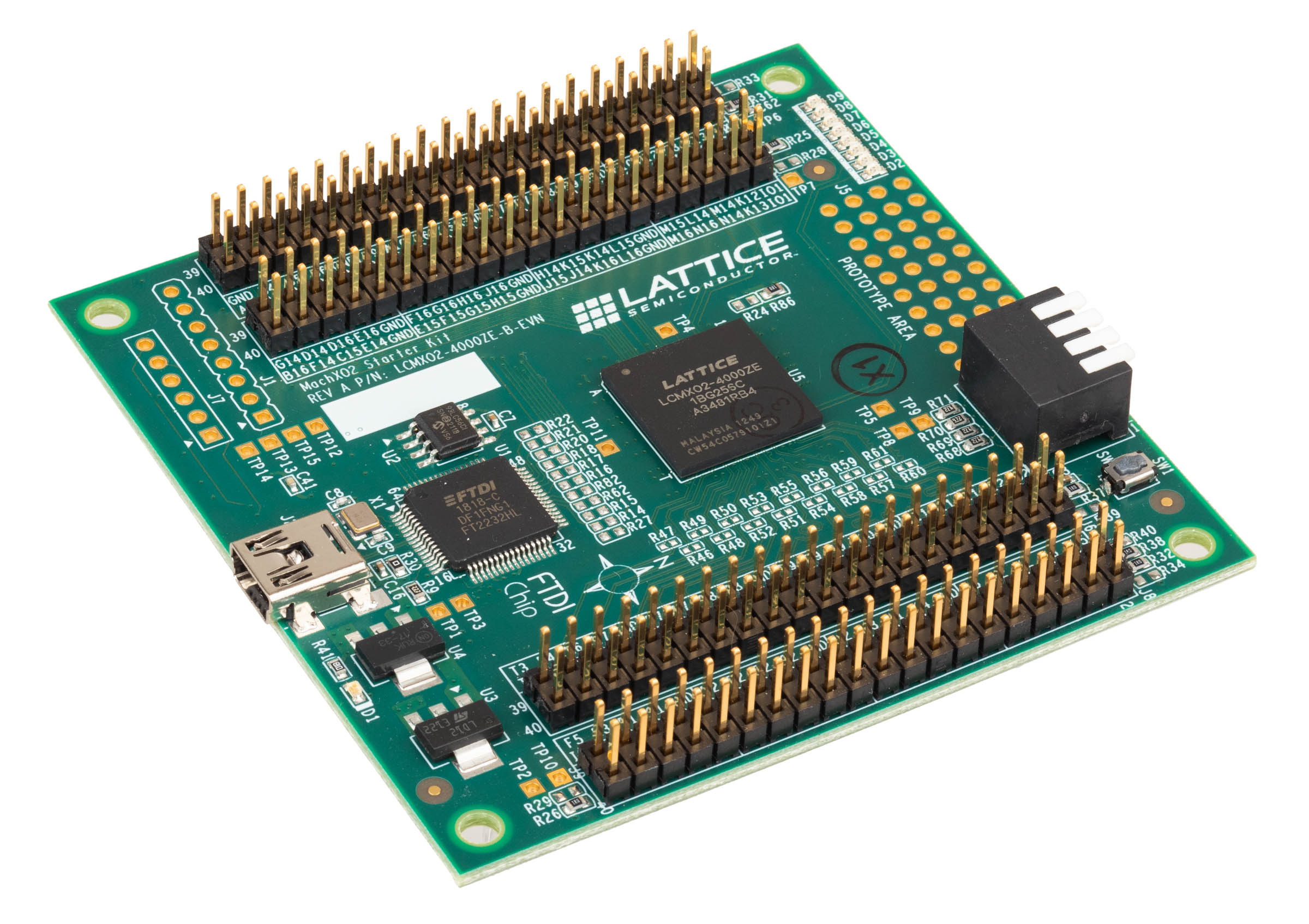

This Breakout board is a 3 x 3-inch form factor and features a USB mini-B connector for power and programming, an LED array, and prototype area. It comes with a pre-loaded demonstration, a counter design that highlights use of the embedded MachXO2ZE oscillator and programmable I/Os configured for LED drive. A USB cable is also included with the kit, and demos area available for download. By using the free Lattice design tools, you can program the MachXO2ZE device to review your own custom design.
A basic LED demo is preprogrammed into each board, and available for download as a reference. The following software can be used to develop new designs:
Features
- Evaluates CMOS I/Os
- Allows power measurement on low power MachXO2ZE devices
- Programming via JTAG or I2C
- SPI flash for external boot or dual-boot operation
